ANCHORED

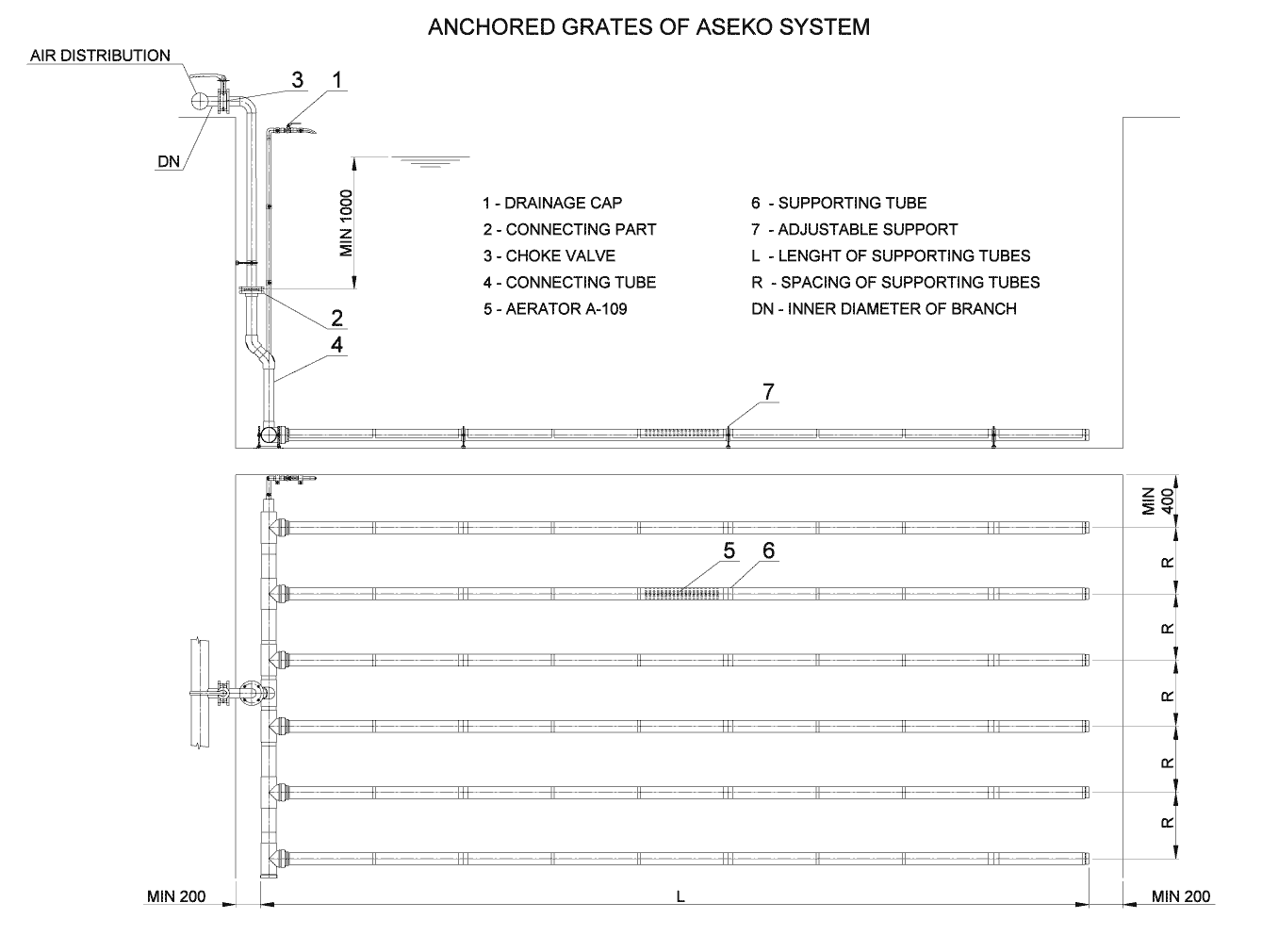

GRATES OF ASEKO SYSTEM
Supporting tubes (6)
with aerators (5)
are connected with each other into a grate with a common air supply. The
anchored grates are fastened to the bottom of the tank by means of adjustable
supports (7).
Air distribution system , at the air inlet side, is provided
with a T-joint with flanged connections. Air is supplied to each grate
through the choke valve (3)
connecting part (2)
and connecting pipe (4).
The connecting part is usually submerged 1 m under water level in the
tank and connects the upper part of air supply to the grate, made of corrosion-proof
stainless steel, while the connecting pipe (4)
is made of PVC. Each grate is equipped with a mechanism to drain condensed
water from the air. From the drainage cap (1),
a pipe is led around the tank wall to the bottom of the supporting tube
of the grate. Anchored grates are intended for tanks where a common air supply to the supporting tubes with aerators and for covered tanks is advantageous. Depending on the shape and size of the tank and the
grates, installing is designed on one or on both sides. Fitting is executed
into empty tanks. The grates are levelled by means of adjustable supports
. In this way any possible surface irregularity of the tank bottom is
eliminated.
|
